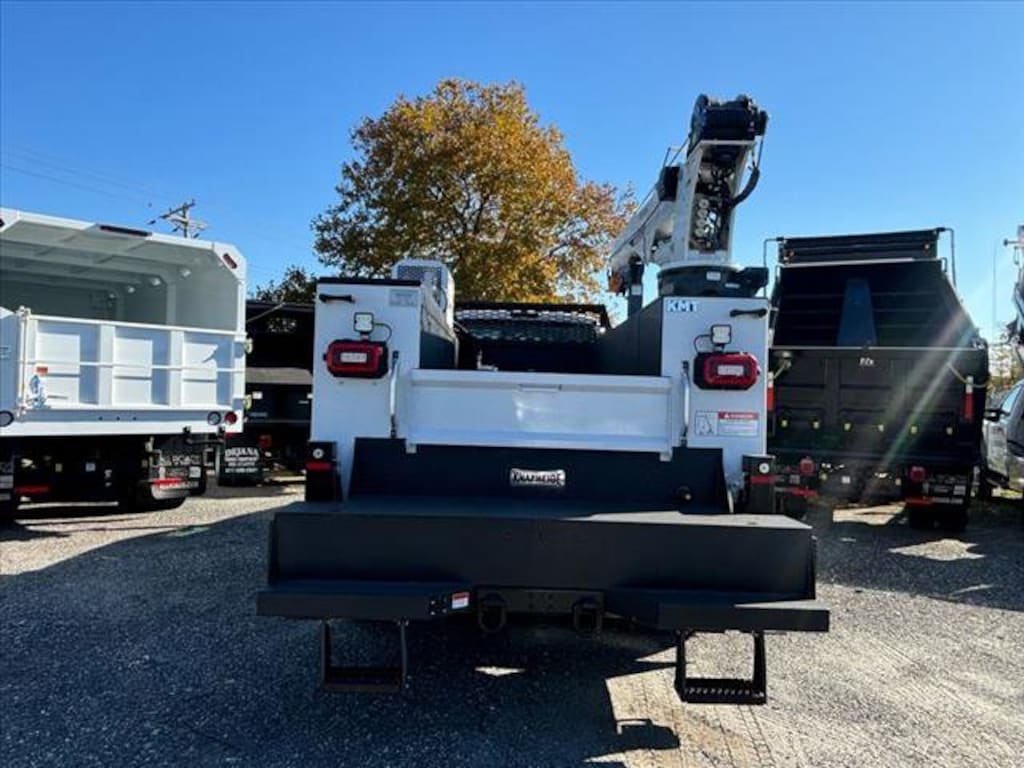

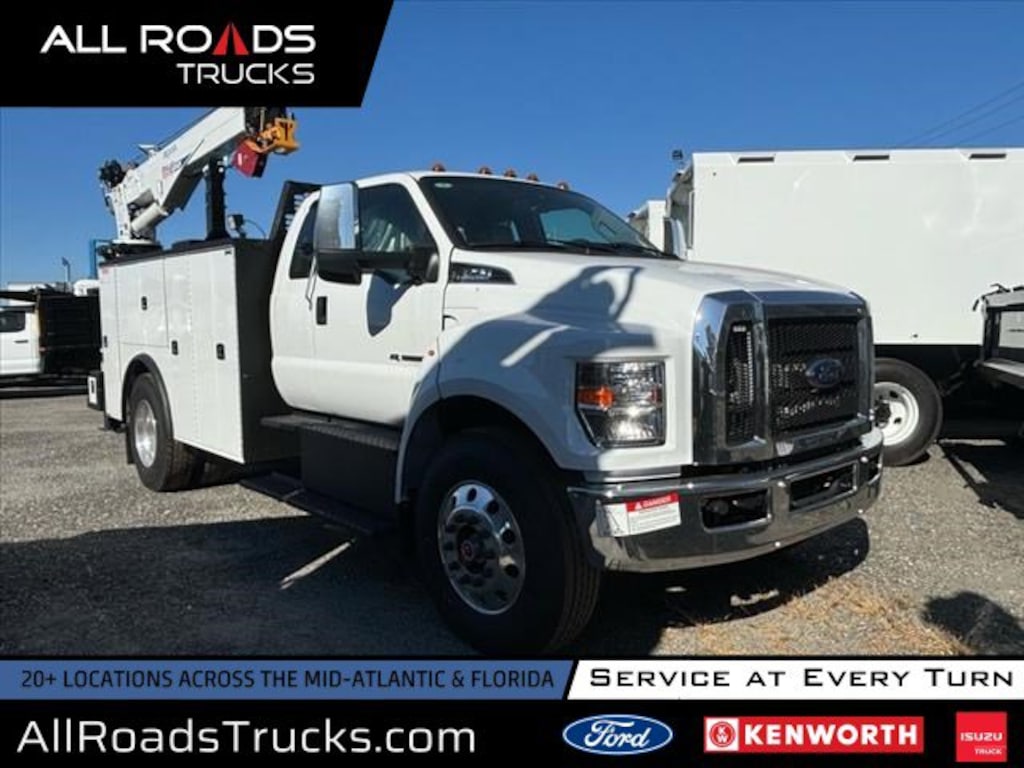

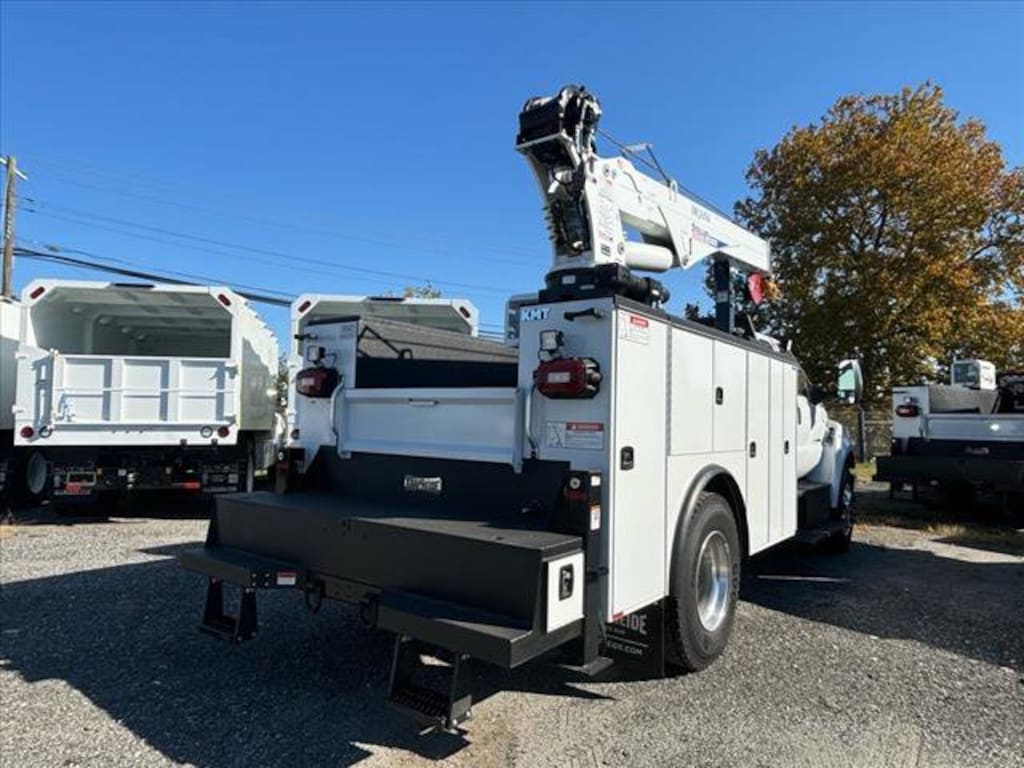

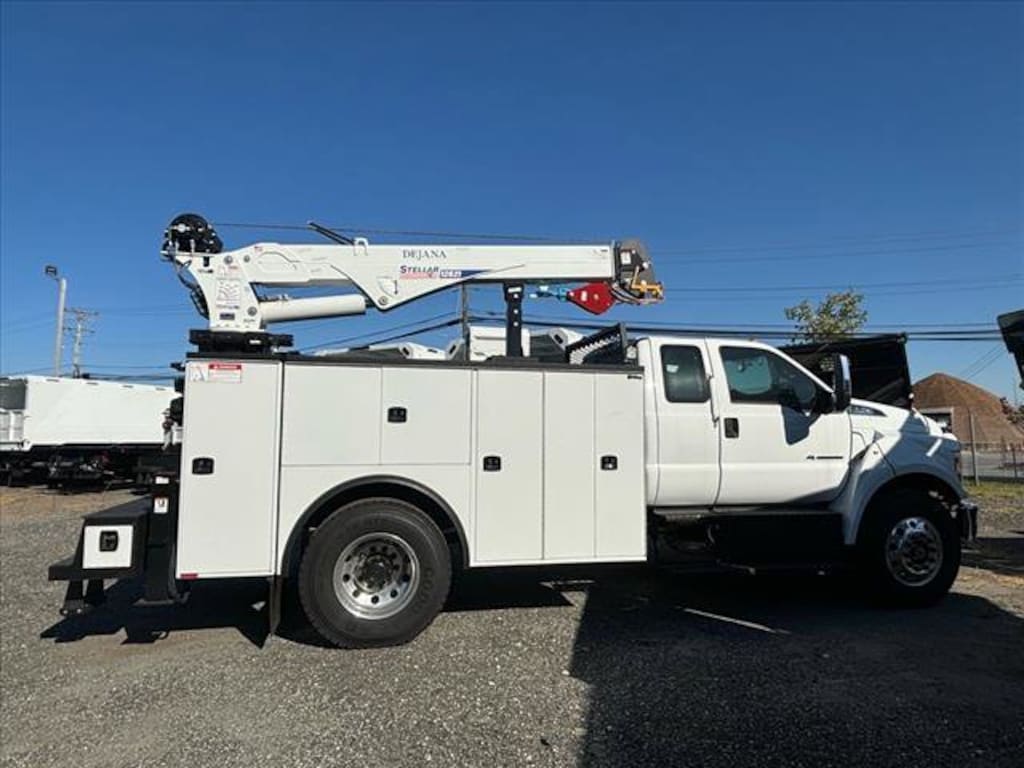

2025 F750 Diesel 300hp Air brake 26k GVWR Mechanics Truck 12621 Stellar Crane 12k Lifting capacity 21ft reach on a 11ft service body
New 2025 FordF-750 Diesel Base
Dealer Notes
- Exterior Color
- Oxford White
- Interior Color
- Gray
- Body/Seating
- Truck Extended Cab/5 seats
- Transmission
- Automatic
- Drivetrain
- Rear-Wheel Drive
- Engine
- V-8 cyl
- VIN
- 1FDWX7DE7SDF03861
- Stock Number
- FN03861
Ford
F-750 Diesel
Highlighted Features
- Wireless phone connectivity
- Exterior parking camera rear
- Speed sensitive wipers
- Split folding rear seat
- Remote keyless entry
- Steering wheel mounted audio controls
- Fully automatic headlights
- Dual rear wheels
- Heated door mirrors
Included Packages & Accessories
- 6.7L Power Stroke V8 turbo diesel - 300 HP @ 2500 RPM
- tires, front two 11R22.5G Goodyear Fuel Max RSA
- 5.57 axle ratio
- tires, rear four 11R22.5G Goodyear Fuel Max RTD
- front stabilizer bar
- trailer air brake package
- trailer connection socket - 7-way, wired for turn signals combined with stop
- voltmeter
- back-up alarm - electric, 102 dBA
- electronic stability control delete
- special rating GVWR - limited to 25,999 lb. GVWR
- pre-delivery inspection
- 4 speaker option for 588 radio
- ship-thru - manning
- engine block heater, Phillips, 120 volt/750 watt
- 12,000 lb. cap. non-driving - Dana E-1202I - I-Beam type
- single channel - straight 'C' 14.18 sm, 120,000 PSI
- mirrors, dual - heated and motorized rectangular, XL2020 - 96" width with chrome cap
- jump start stud - remote mounted
- 110 A/C outlet - in lower center finish panel
- black single trumpet air horn
- body builder wiring - at end of frame, combined -
- lube, front axle, EmGard 50W, synthetic oil
- lube, rear axle, EmGard 75W-90, synthetic oil
- taper-leaf springs, parabolic - 12,000 lb. cap
- rear view camera with mirror display
- battery - two 900 CCA, 1800 total, includes steel battery box
- front 22.5x8.25 aluminum, 10-hole Alcoa bright polished wheels with Dura-Bright seal on both sides
- rear 22.5x8.25 aluminum, 10-hole Alcoa bright polished wheels with Dura-Bright seal on both sides
- preferred equipment package 600A
- bumper, front - black, full width
- wheel seals, front - oil lubricated, SKF ScotSeal PlusXL seals
- wheel seals, rear - oil lubricated, SKF ScotSeal PlusXL seals
- manual Regen initiation - driver interface in message center
- engine exhaust brake
- extra heavy duty alternator - 12-volt, 200 amp Denso SC5
- painted plastic grille
- lights - roof marker/clearance - amber lenses, 5 lights
- tow hooks, front - frame-mounted, painted black
- four body builder switches - mounted in center instrument panel
- black vinyl floor covering
- intelligent oil life monitor
- steering column - tilt / telescoping
- steering wheel - black PVC with integral cruise control switches, includes audio controls
- body builder wiring - at back of cab, combined
- air dryer, Bendix AD/IS with heater
- air brakes - straight truck with traction control
- SecuriLock passive anti-theft system
- exterior appearance group
- bumper, front - full width, chrome plated steel
- chromed fender badge
- chrome grille surround
- power equipment group
- remote keyless entry with 2 key fobs
Included Packages & Options
- air brakes - straight truck with traction control$2,530
- air dryer, Bendix AD/IS with heater
- exterior appearance group$730
- bumper, front - full width, chrome plated steel
- chromed fender badge
- chrome grille surround
- power equipment group$550
- SecuriLock passive anti-theft system
- remote keyless entry with 2 key fobs
Included Options
- 6.7L Power Stroke V8 turbo diesel - 300 HP @ 2500 RPM$1,995
- tires, rear four 11R22.5G Goodyear Fuel Max RTD$140
- front stabilizer bar$490
- trailer air brake package$365
- trailer connection socket - 7-way, wired for turn signals combined with stop$100
- voltmeter$100
- back-up alarm - electric, 102 dBA$110
- special rating GVWR - limited to 25,999 lb. GVWR$120
- 4 speaker option for 588 radio$30
- engine block heater, Phillips, 120 volt/750 watt$155
- 12,000 lb. cap. non-driving - Dana E-1202I - I-Beam type$525
- single channel - straight 'C' 14.18 sm, 120,000 PSI$365
- mirrors, dual - heated and motorized rectangular, XL2020 - 96" width with chrome cap$245
- jump start stud - remote mounted$90
- 110 A/C outlet - in lower center finish panel$100
- black single trumpet air horn$90
- body builder wiring - at end of frame, combined -$135
- lube, front axle, EmGard 50W, synthetic oil$50
- lube, rear axle, EmGard 75W-90, synthetic oil$100
- taper-leaf springs, parabolic - 12,000 lb. cap$305
- rear view camera with mirror display$510
- battery - two 900 CCA, 1800 total, includes steel battery box$60
- front 22.5x8.25 aluminum, 10-hole Alcoa bright polished wheels with Dura-Bright seal on both sides$735
- rear 22.5x8.25 aluminum, 10-hole Alcoa bright polished wheels with Dura-Bright seal on both sides$830
Detailed Specifications
- 1-touch down
- 1-touch up
- Air conditioning
- Driver door bin
- Front beverage holders
- Illuminated entry
- Passenger door bin
- Passenger vanity mirror
- Power windows
- Remote keyless entry
- Speed control
- Telescoping steering wheel
- Tilt steering wheel
- Dual rear wheels
- Front anti-roll bar
- Front tires: 279/82R22.5G
- Power steering
- Rear tires: 279/82R22.5G
- Rear wheel size: 22.5"
- Wheel size: 22.5"
- AM/FM radio
- Speakers: 4
- Steering wheel mounted audio controls
- Wireless phone connectivity: Bluetooth
- Basic warranty: 24 months/ unlimited distance
- Corrosion perforation warranty: 36 months/ unlimited distance
- Diesel engine warranty: 60 months/250,000miles
- Powertrain warranty: 24 months/ unlimited distance
- Roadside assistance coverage: 24 months/ unlimited distance
- Driver seat mounted armrest
- Max seating capacity: 5
- Passenger seat mounted armrest
- Rear seats: split-bench
- Rear seats Folding position: fold-up cushion
- Seat Upholstery: vinyl
- Split folding rear seat
- Block heater
- Compressor: intercooled turbo
- Cylinder configuration: V-8
- Drive type: rear-wheel
- Engine liters: 6.7L
- Engine location: front
- Horsepower: 300hp @ 2,500RPM
- Hybrid traction battery type: none
- Manual-shift auto
- Mode select transmission
- Number of valves: 32
- Recommended fuel: Diesel
- Torque: 725 lb.-ft. @ 1,500RPM
- Transmission: 10 speed automatic
- Bumpers: chrome
- Door mirrors: chrome
- Heated door mirrors
- Power door mirrors
- Compression ratio: 16.20 to 1
- Curb weight: 4,950kg (10,912lbs)
- Engine bore x stroke: 99.1mm x 108.0mm (3.90" x 4.25")
- Engine displacement: 6.7 L
- Engine horsepower: 300hp @ 2,500RPM
- Engine torque: 725 lb.-ft. @ 1,500RPM
- Exterior body width: 2,456mm (96.7")
- Exterior height: 2,416mm (95.1")
- Exterior length: 6,782mm (267.0")
- Front headroom: 1,034mm (40.7")
- Front hiproom: 1,717mm (67.6")
- Front legroom: 1,052mm (41.4")
- Front shoulder room: 1,727mm (68.0")
- Rear headroom: 968mm (38.1")
- Rear hiproom: 1,709mm (67.3")
- Rear legroom: 803mm (31.6")
- Rear shoulder room: 1,730mm (68.1")
- Wheelbase: 4,547mm (179.0")
- Appearance: analog
- Delay-off headlights
- Exterior parking camera rear
- Fully automatic headlights
- Speed sensitive wipers
- Tachometer
- Trip computer
- Variably intermittent wipers
- Voltmeter
- ABS brakes
- Electronic stability
- Ignition disable
- Panic alarm
- Tracker system
- Traction control
Price displayed includes all available manufacturer rebates and incentives but may not include the price of the truck body (if one has been upfitted). Contact us for a customized price quote.
